Capacitive Micromachined Ultrasonic Transducer
Introduction
A capacitive micromachined ultrasonic transducer (CMUT) is a microscale transmitter-receiver that converts an electrical signal to ultrasound or vice versa for high-resolution imaging applications. This model analyzes a CMUT receiver with a novel piston-shaped electrode and suspended mass design that optimizes force-displacement characteristics for increased efficiency. The improvement is reflected in the increase of the displacement uniformity factor, which can be calculated using a Frequency Domain, Prestressed study. CMUT technology in general improves upon a well-established medical imaging technology dominated by piezoelectric transducers and promises miniaturization and higher resolution.
Model Definition
The device is based on the work reported in Ref. 1. It can be fabricated using well-established 0.35 μm CMOS-MEMS process technology. On a silicon substrate, alternating layers of dielectric (silicon dioxide) and metal (aluminum) are deposited and lithographically patterned in sequence. All dielectric and metal thicknesses are 1.0 μm and 0.64 μm, respectively, except for the topmost metal layer which is 1.28 μm. There are three dielectric layers, four metal layers, and one final passivation layer (silicon nitride) which is 1.0 μm. The passivation layer serves as a membrane that can respond to external pressure and protects the device from the external environment. After the deposition steps are completed, a selective and isotropic etching process removes the sacrificial material to release the membrane and the suspended mass.
The model is a 3D model of one quadrant of the device. Because of its four-fold symmetry and the analyses needed, it is not necessary to explicitly model the entire device. Figure 1 shows the piston-shaped electrode within the suspended mass and connected to the membrane.The model comprises dielectric, metal, and passivation layers. The dimensions of the geometric model are:
•
Length: 31.75 μm (half the length of the device)
•
Height: 6.56 μm
Figure 1: The model of one quadrant of the device. This 3D plot shows the materials used in the model. The membrane is silicon nitride (yellow), the top electrode and supports are metal (red), and the suspended mass is silicon dioxide (blue). The void or gap is shown in gray.

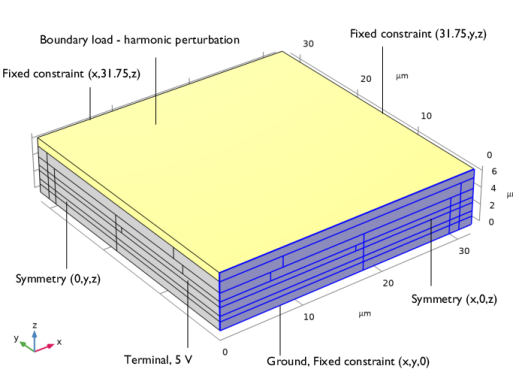

Figure 2 shows the boundary conditions. The ground plane is represented by a Ground boundary condition. The first layer of silicon dioxide is deposited over the ground plane. The gap is defined by the thickness of the sacrificial metal layer. Embedded within the suspended mass is the electrode plate connected to the silicon nitride membrane/passivation layer. As the membrane is deflected by an external pressure differential, the gap between the electrodes changes. The external stimulation is represented by a Boundary Load boundary condition using a Harmonic Perturbation. This condition is applied to the top surface of the membrane. With a bias of 5 V between the electrodes, the change in capacitance will be reflected in the output current.
Figure 2: This 3D plot shows boundary conditions used in the model. At the bottom surface of the model is Ground plate and top electrode is set to 5 V. Applied to the top surface is the Boundary Load using a Harmonic Perturbation.
In general the amplified output voltage, Vout, of the CMUT is given by
where CCMUT is the static capacitance of the device, h1MD is the total thickness of the dielectric between the electrodes, εr is the permittivity of the dielectric, do is the capacitor gap, VP is the DC bias, ABF is the gain of the buffer circuit, CF is the capacitance of the charge integrator circuit, and Δdavg is the average displacement of the electrode. In Ref. 1 Vout is maximized independently of the fabrication process and the buffer circuit. This means the layer thicknesses, material property (do, h1MD, εr) and the circuit parameters (CF, ABF) are unchanged. Δdavg characterizes a specific electrode-mass structure and is the only parameter in the expression that is changed through mask design. In comparison to the standard design, the piston-shaped electrode (see Figure 7, Top-Right) results in reduced electrode curvature and, consequently, increased Δdavg. The improvement is reflected in the CMUT displacement uniformity factor, F, given by
which can be calculated using the Average and Minimum coupling operators.
The model geometry is fully parameterized to allow for easy changes in the device structure to target a specific resonant frequency. The model solves a multiphysics problem involving electromechanical force and calculates the frequency response of the device using a Frequency Domain, Prestressed study. The device is connected to an external circuit using the Electrical Circuit interface for calculating the output current. The model uses built-in operators to compute average and minimum displacements over the electrode surface to calculate the displacement uniformity factor.
Results and Discussion
Figure 3 shows the frequency response over the range1.7–2.5 MHz to measure electrode displacement and output current.
Figure 3: Current versus frequency.
Figure 4 shows profile of the top-electrode cross section as a function of the frequency. The maximum displacement is at the center of the device and is 13 nm at 2.1 MHz.
Figure 4: Profile of the top electrode s a function of frequency. Maximum displacement is at the center of the device and is 13 nm at 2.1 MHz.
Figure 5 shows the solid displacement of the structure with a harmonic perturbation at 1.7 MHz. The subsequent Eigenfrequency study shows an eigenmode at 7.5016 MHz which closely matches the reported value of 7.52 MHz (Ref. 1). Figure 6 shows solid displacement for the eigenmode.
Figure 5: The solid displacement of the structure with a harmonic perturbation at 1.7 MHz.
Figure 6: Solid displacement for eigenmode at 7.5 MHz. Maximum displacement is at the center of the device and is 13 nm at 2.1 MHz.

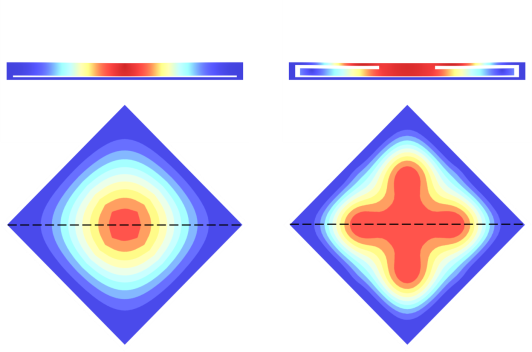

Figure 7 shows the comparison between the standard and piston-shaped CMUT. As expected, the displacement is maximal at the center of the device and for the conventional device the pattern is more circular and therefore the displacement is highly nonuniform. In the piston-shaped device the corners of the suspended mass are not connected to the membrane to allow more uniform displacement along the diagonals of the device. According Ref. 1, the F value for a conventional CMUT is 0.6 so the piston-shaped design improves the output of the device by about 40%.
Figure 7: CMUT cross sections along the diagonals (dashed line) for the standard design (Top-Left) and the piston-shaped design (Top-Right). Displacement across CMUT for the standard design (Bottom-Left) and the piston-shaped design (Bottom-Right). The piston-shaped suspended mass increases displacement uniformity.
Reference
1. C. Chou,P. Chen, H. Wu, T. Hsu, and M. Li, “Piston-Shaped CMOS-MEMS CMUT Front-End Featuring Force-Displacement Transduction Enhancement,” Proceedings of the 21st International Conference on Solid-State Sensors, Actuators and Microsystems (Transducers), pp. 26–29, 2021.
Application Library path: MEMS_Module/Sensors/capacitive_micromachined_ultrasonic_transducer
Modeling Instructions
Start by creating a new 3D model with Electromechanics and Electrical Circuit interfaces.
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select AC/DC > Electromagnetics and Mechanics > Electromechanics > Electromechanics, Solid.
3
Click Add.
4
In the Select Physics tree, select AC/DC > Electrical Circuit (cir).
5
Click Add.
6
Click  Study.
7
In the Select Study tree, select Preset Studies for Selected Physics Interfaces > Solid Mechanics > Frequency Domain, Prestressed.
8
Click  Done.
Define and enter the values for the following parameters.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
l
63.5[um]
6.35E-5 m
Length of device
l_et
33[um]
3.3E-5 m
Length of top electrode
l_eb
35[um]
3.5E-5 m
Length of bottom electrode
t_ox
1[um]
1E-6 m
Thickness of oxide
t_m2
0.64[um]
6.4E-7 m
Thickness of sacrificial metal, M2
t_m3
0.64[um]
6.4E-7 m
Thickness of top electrode, M3
t_m4
1.28[um]
1.28E-6 m
Thickness of support metal, M4
t_w
3.4[um]
3.4E-6 m
Thickness of wall
w_ox
11.25[um]
1.125E-5 m
Width of oxide around top electrode
l_v43
12[um]
1.2E-5 m
Length of via 4-3
l_m4
15[um]
1.5E-5 m
Length of support metal
w_b
3.6[um]
3.6E-6 m
Width of support beam
t_np
1[um]
1E-6 m
Thickness of nitride passivation layer
p_max
1[MPa]
1E6 Pa
Maximum pressure
R_load
1[Gohm]
1E9 Ω
Load resistance
V_a
5[V]
5 V
Applied voltage
Use microns as the geometry unit.
Geometry 1
1
In the Model Builder window, under Component 1 (comp1) click Geometry 1.
2
In the Settings window for Geometry, locate the Units section.
3
From the Length unit list, choose µm.
Work Plane 1 (wp1)
In the Geometry toolbar, click  Work Plane.
Work Plane 1 (wp1) > Plane Geometry
In the Model Builder window, click Plane Geometry.
Device
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Device in the Label text field.
3
Locate the Size section. In the Side length text field, type l/2.
Piston
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Piston in the Label text field.
3
Locate the Size section. In the Side length text field, type l_eb/2+w_ox.
Inside Wall
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Inside Wall in the Label text field.
3
Locate the Size section. In the Side length text field, type l/2-t_w/2.
Bottom Electrode
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Bottom Electrode in the Label text field.
3
Locate the Size section. In the Side length text field, type l_eb/2.
Oxide 1
1
In the Model Builder window, right-click Geometry 1 and choose Extrude.
2
In the Settings window for Extrude, type Oxide 1 in the Label text field.
3
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_ox
Metal 2
1
In the Geometry toolbar, click  Extrude.
2
In the Settings window for Extrude, type Metal 2 in the Label text field.
3
Locate the General section. From the Extrude from list, choose Faces.
4
On the object ext1, select Boundaries 4, 8, 12, and 16 only.
5
From the Input object handling list, choose Keep.
6
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_m2
Oxide 2
1
In the Geometry toolbar, click  Extrude.
2
In the Settings window for Extrude, type Oxide 2 in the Label text field.
3
Locate the General section. From the Extrude from list, choose Faces.
4
On the object ext2, select Boundaries 4, 8, 12, and 16 only.
5
From the Input object handling list, choose Keep.
6
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_ox
Metal 3
1
In the Geometry toolbar, click  Extrude.
2
In the Settings window for Extrude, type Metal 3 in the Label text field.
3
Locate the General section. From the Extrude from list, choose Faces.
4
On the object ext3, select Boundaries 4, 8, 12, and 16 only.
5
From the Input object handling list, choose Keep.
6
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_m3
Oxide 3
1
In the Geometry toolbar, click  Extrude.
2
In the Settings window for Extrude, type Oxide 3 in the Label text field.
3
Locate the General section. From the Extrude from list, choose Faces.
4
On the object ext4, select Boundaries 4, 8, 12, and 16 only.
5
From the Input object handling list, choose Keep.
6
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_ox
Work Plane 2 (wp2)
1
In the Geometry toolbar, click  Work Plane.
2
In the Settings window for Work Plane, locate the Plane Definition section.
3
In the z-coordinate text field, type t_ox+t_m2+t_ox+t_m3+t_ox.
Work Plane 2 (wp2) > Plane Geometry
In the Model Builder window, click Plane Geometry.
Support, Center
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Support, Center in the Label text field.
3
Locate the Size section. In the Side length text field, type l_m4/2.
Support, x
1
In the Work Plane toolbar, click  Rectangle.
2
In the Settings window for Rectangle, type Support, x in the Label text field.
3
Locate the Size and Shape section. In the Width text field, type l/2-l_m4/2.
4
In the Height text field, type w_b/2.
5
Locate the Position section. In the xw text field, type l_m4/2.
Support, y
1
In the Work Plane toolbar, click  Rectangle.
2
In the Settings window for Rectangle, type Support, y in the Label text field.
3
Locate the Size and Shape section. In the Width text field, type w_b/2.
4
In the Height text field, type l/2-l_m4/2.
5
Locate the Position section. In the yw text field, type l_m4/2.
Device, Upper
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Device, Upper in the Label text field.
3
Locate the Size section. In the Side length text field, type l/2.
Inside Wall, Upper
1
In the Work Plane toolbar, click  Square.
2
In the Settings window for Square, type Inside Wall, Upper in the Label text field.
3
Locate the Size section. In the Side length text field, type l/2-t_w/2.
Metal 4
1
In the Model Builder window, under Component 1 (comp1) > Geometry 1 right-click Work Plane 2 (wp2) and choose Extrude.
2
In the Settings window for Extrude, type Metal 4 in the Label text field.
3
Locate the General section. From the Input object handling list, choose Keep.
4
Locate the Distances section. In the table, enter the following settings:
Distances (µm)
t_m4
Nitride
1
In the Geometry toolbar, click  Block.
2
In the Settings window for Block, type Nitride in the Label text field.
3
Locate the Size and Shape section. In the Width text field, type l/2.
4
In the Depth text field, type l/2.
5
In the Height text field, type t_np.
6
Locate the Position section. In the z text field, type t_ox+t_m2+t_ox+t_m3+t_ox+t_m4.
7
Locate the Selections of Resulting Entities section. Select the Resulting objects selection checkbox.
8
Find the Cumulative selection subsection. Click New.
9
In the New Cumulative Selection dialog, type Passivation in the Name text field.
10
Click OK.
11
In the Settings window for Block, locate the Selections of Resulting Entities section.
12
From the Color list, choose None or — if you are running the cross-platform desktop —Custom. On the cross-platform desktop, click the Color button.
13
Click Define custom colors.
14
Set the RGB values to 255, 255, and 155, respectively.
15
Click Add to custom colors.
16
Click Show color palette only or OK on the cross-platform desktop.
Via
1
In the Geometry toolbar, click  Block.
2
In the Settings window for Block, type Via in the Label text field.
3
Locate the Size and Shape section. In the Width text field, type l_v43/2.
4
In the Depth text field, type l_v43/2.
5
In the Height text field, type t_ox.
6
Locate the Position section. In the z text field, type t_ox+t_m2+t_ox+t_m3.
Top Electrode
1
In the Geometry toolbar, click  Block.
2
In the Settings window for Block, type Top Electrode in the Label text field.
3
Locate the Size and Shape section. In the Width text field, type l_et/2.
4
In the Depth text field, type l_et/2.
5
In the Height text field, type t_m3.
6
Locate the Position section. In the z text field, type t_ox+t_m2+t_ox.
Form Union (fin)
1
In the Model Builder window, click Form Union (fin).
2
In the Settings window for Form Union/Assembly, click  Build Selected.
Define the following selections for the Gap, Oxide, and Electrode regions.
Definitions
Gap
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Gap in the Label text field.
3
Locate the Input Entities section. Click  Paste Selection.
4
In the Paste Selection dialog, type 2 12 17 18 19 20 27 in the Selection text field.
5
Click OK.
Oxide
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Oxide in the Label text field.
3
Locate the Input Entities section. Click  Paste Selection.
4
In the Paste Selection dialog, type 1 3 8 10 11 13 14 15 16 21 22 23 24 25 28 in the Selection text field.
5
Click OK.
Electrode
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Electrode in the Label text field.
3
Locate the Input Entities section. Click  Paste Selection.
4
In the Paste Selection dialog, type 4 5 6 9 26 29 30 in the Selection text field.
5
Click OK.
Edge, Center
1
In the Definitions toolbar, click  Box.
2
In the Settings window for Box, type Edge, Center in the Label text field.
3
Locate the Geometric Entity Level section. From the Level list, choose Edge.
4
Locate the Box Limits section. In the x maximum text field, type 0.
5
In the y maximum text field, type 0.
6
Locate the Output Entities section. From the Include entity if list, choose Entity inside box.
Define the Average and Minimum operators needed for evaluation.
Average 1 (aveop1)
1
In the Definitions toolbar, click  Nonlocal Couplings and choose Average.
2
In the Settings window for Average, locate the Source Selection section.
3
From the Geometric entity level list, choose Boundary.
4
Click  Paste Selection.
5
In the Paste Selection dialog, type 12 in the Selection text field.
6
Click OK.
Minimum 1 (minop1)
1
In the Definitions toolbar, click  Nonlocal Couplings and choose Minimum.
2
In the Settings window for Minimum, locate the Source Selection section.
3
From the Geometric entity level list, choose Boundary.
4
Click  Paste Selection.
5
In the Paste Selection dialog, type 12 in the Selection text field.
6
Click OK.
Add materials to the model.
Add Material
1
In the Materials toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select MEMS > Metals > Al - Aluminum.
4
Click the Add to Component button in the window toolbar.
Materials
Al - Aluminum (mat1)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
From the Selection list, choose Electrode.
3
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Property group
Relative permittivity
epsilonr_iso ; epsilonrii = epsilonr_iso, epsilonrij = 0
1
1
Basic
Add Material
1
Go to the Add Material window.
2
In the tree, select MEMS > Insulators > SiO2 - Silicon oxide.
3
Click the Add to Component button in the window toolbar.
Materials
SiO2 - Silicon oxide (mat2)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
From the Selection list, choose Oxide.
Add Material
1
Go to the Add Material window.
2
In the tree, select MEMS > Insulators > Si3N4 - Silicon nitride.
3
Click the Add to Component button in the window toolbar.
Materials
Si3N4 - Silicon nitride (mat3)
1
In the Settings window for Material, locate the Geometric Entity Selection section.
2
From the Selection list, choose Passivation.
3
In the Model Builder window, under Component 1 (comp1) click Materials.
Moving Mesh
Deforming Domain 1
1
In the Model Builder window, under Component 1 (comp1) > Moving Mesh click Deforming Domain 1.
2
In the Settings window for Deforming Domain, locate the Domain Selection section.
3
From the Selection list, choose Gap.
Symmetry/Roller 1
1
In the Model Builder window, click Symmetry/Roller 1.
2
Select Boundaries 4, 5, 38, 54, 57, 60, 63, 117, 128, 130, 132, and 134 only.
Because this model uses the Electrical Circuit interface, for Discretization select the Finite element (quadratic shape function) formulation.
Electrostatics (es)
1
In the Model Builder window, under Component 1 (comp1) click Electrostatics (es).
2
In the Settings window for Electrostatics, click to expand the Discretization section.
3
From the Formulation list, choose Finite element (quadratic shape function).
Set up Electrostatics boundary conditions.
Charge Conservation in Solids 1
1
In the Model Builder window, under Component 1 (comp1) > Electrostatics (es) click Charge Conservation in Solids 1.
2
In the Settings window for Charge Conservation in Solids, locate the Domain Selection section.
3
Click  Clear Selection.
4
Select Domains 1, 3, 7, 8, 10, 11, 13–16, 21–25, and 28 only.
Terminal 1
1
In the Physics toolbar, click  Domains and choose Terminal.
2
In the Settings window for Terminal, locate the Domain Selection section.
3
From the Selection list, choose Electrode.
4
Locate the Terminal section. From the Terminal type list, choose Circuit.
Ground 1
1
In the Physics toolbar, click  Boundaries and choose Ground.
2
In the Settings window for Ground, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 3 in the Selection text field.
5
Click OK.
Symmetry Plane 1
1
In the Physics toolbar, click  Boundaries and choose Symmetry Plane.
2
In the Settings window for Symmetry Plane, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 2 5 8 11 14 17 20 105 107 113 115 117 119 121 123 126 128 130 132 134 137 139 141 143 145 147 in the Selection text field.
5
Click OK.
Symmetry Plane 2
1
In the Physics toolbar, click  Boundaries and choose Symmetry Plane.
2
In the Settings window for Symmetry Plane, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 1 4 7 10 13 16 19 23 27 31 35 38 41 44 47 51 54 57 60 63 67 70 73 76 79 82 in the Selection text field.
5
Click OK.
Set up Solid Mechanics boundary conditions.
Solid Mechanics (solid)
In the Model Builder window, under Component 1 (comp1) click Solid Mechanics (solid).
Symmetry 1
In the Physics toolbar, click  Boundaries and choose Symmetry.
Electrostatics (es)
Symmetry Plane 1
1
In the Model Builder window, under Component 1 (comp1) > Electrostatics (es) click Symmetry Plane 1.
2
In the Settings window for Symmetry Plane, locate the Boundary Selection section.
3
In the list, choose 2, 5, 8, 11, 14, 17, 20, 105, 107, 113, 115, 117, 119, 121, 123, 126, 128, 130, 132, 134, 137, 139, 141, 143, 145, and 147.
4
Click  Copy Selection.
Solid Mechanics (solid)
Symmetry 1
1
In the Model Builder window, under Component 1 (comp1) > Solid Mechanics (solid) click Symmetry 1.
2
In the Settings window for Symmetry, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 2 5 8 11 14 17 20 105 107 113 115 117 119 121 123 126 128 130 132 134 137 139 141 143 145 147 in the Selection text field.
5
Click OK.
Symmetry 2
In the Physics toolbar, click  Boundaries and choose Symmetry.
Electrostatics (es)
Symmetry Plane 2
1
In the Model Builder window, under Component 1 (comp1) > Electrostatics (es) click Symmetry Plane 2.
2
In the Settings window for Symmetry Plane, locate the Boundary Selection section.
3
In the list, choose 1, 4, 7, 10, 13, 16, 19, 23, 27, 31, 35, 38, 41, 44, 47, 51, 54, 57, 60, 63, 67, 70, 73, 76, 79, and 82.
4
Click  Copy Selection.
Solid Mechanics (solid)
Symmetry 2
1
In the Model Builder window, under Component 1 (comp1) > Solid Mechanics (solid) click Symmetry 2.
2
In the Settings window for Symmetry, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 1 4 7 10 13 16 19 23 27 31 35 38 41 44 47 51 54 57 60 63 67 70 73 76 79 82 in the Selection text field.
5
Click OK.
Fixed Constraint 1
1
In the Physics toolbar, click  Boundaries and choose Fixed Constraint.
2
In the Settings window for Fixed Constraint, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 3 37 53 69 86 87 88 89 90 91 92 103 152 153 154 155 156 157 158 159 in the Selection text field.
5
Click OK.
Specify a Boundary Load feature with Harmonic Perturbation to model an excitation by a pressure wave.
Boundary Load 1
1
In the Physics toolbar, click  Boundaries and choose Boundary Load.
2
In the Settings window for Boundary Load, locate the Boundary Selection section.
3
Click  Paste Selection.
4
In the Paste Selection dialog, type 22 in the Selection text field.
5
Click OK.
6
In the Settings window for Boundary Load, locate the Force section.
7
From the Load type list, choose Pressure.
8
In the p text field, type p_max.
9
Right-click Boundary Load 1 and choose Harmonic Perturbation.
Set up Electrical Circuit parameters and specify how the device terminals are connected to the external circuit.
Electrical Circuit (cir)
External I vs. U 1 (IvsU1)
1
In the Electrical Circuit toolbar, click  External I vs. U.
2
In the Settings window for External I vs. U, locate the Node Connections section.
3
In the table, enter the following settings:
Label
Node names
n
0
4
Locate the External Device section. From the V list, choose Terminal voltage (es/term1).
Resistor 1 (R1)
1
In the Electrical Circuit toolbar, click  Resistor.
2
In the Settings window for Resistor, locate the Node Connections section.
3
In the table, enter the following settings:
Label
Node names
p
1
n
2
4
Locate the Device Parameters section. In the R text field, type R_load.
Voltage Source 1 (V1)
1
In the Electrical Circuit toolbar, click  Voltage Source.
2
In the Settings window for Voltage Source, locate the Node Connections section.
3
In the table, enter the following settings:
Label
Node names
p
2
n
0
4
Locate the Device Parameters section. In the vsrc text field, type V_a.
Mesh 1
1
In the Model Builder window, under Component 1 (comp1) click Mesh 1.
2
In the Settings window for Mesh, locate the Physics-Controlled Mesh section.
3
From the Element size list, choose Extra coarse.
Set up the steps for a Frequency Domain, Prestressed study.
Study 1
1
In the Model Builder window, click Study 1.
2
In the Settings window for Study, locate the Study Settings section.
3
Clear the Generate default plots checkbox.
Step 2: Frequency-Domain Perturbation
1
In the Model Builder window, under Study 1 click Step 2: Frequency-Domain Perturbation.
2
In the Settings window for Frequency-Domain Perturbation, locate the Study Settings section.
3
From the Frequency unit list, choose MHz.
4
In the Frequencies text field, type range(1.5,0.2,2.5).
5
In the Study toolbar, click  Compute.
From the results of Study 1, plot the terminal current versus frequency.
Results
Terminal Current vs. Frequency
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Terminal Current vs. Frequency in the Label text field.
3
Locate the Legend section. From the Position list, choose Lower right.
Global 1
1
Right-click Terminal Current vs. Frequency and choose Global.
2
In the Settings window for Global, locate the y-Axis Data section.
3
In the table, enter the following settings:
Expression
Unit
Description
es.I0_1
A
Terminal current
4
In the Terminal Current vs. Frequency toolbar, click  Plot.
From the results of Study 1, plot the electrode profile.
Electrode Profile
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Electrode Profile in the Label text field.
3
Locate the Legend section. From the Position list, choose Upper left.
Line Graph 1
1
Right-click Electrode Profile and choose Line Graph.
2
Select Edges 12, 144, 159, and 207 only.
3
In the Settings window for Line Graph, locate the y-Axis Data section.
4
In the Expression text field, type z.
5
Select the Description checkbox.
6
Locate the x-Axis Data section. From the Parameter list, choose Expression.
7
In the Expression text field, type x.
8
Select the Description checkbox.
9
Locate the y-Axis Data section. Select the Compute differential checkbox.
10
Click to expand the Legends section. Select the Show legends checkbox.
11
In the Electrode Profile toolbar, click  Plot.
From the results of Study 1, plot the displacement magnitude.
Displacement Magnitude
1
In the Results toolbar, click  3D Plot Group.
2
In the Settings window for 3D Plot Group, type Displacement Magnitude in the Label text field.
3
Locate the Data section. From the Parameter value (freq (MHz)) list, choose 1.7.
Volume 1
1
Right-click Displacement Magnitude and choose Volume.
2
In the Settings window for Volume, click Replace Expression in the upper-right corner of the Expression section. From the menu, choose Component 1 (comp1) > Solid Mechanics > Displacement > solid.disp - Displacement magnitude - m.
3
Locate the Expression section. Select the Description checkbox.
4
Locate the Coloring and Style section. From the Color table list, choose RainbowLight.
5
In the Displacement Magnitude toolbar, click  Plot.
From the results of Study 1, evaluate the displacement uniformity factor.
Displacement Uniformity Factor
1
In the Results toolbar, click  Evaluation Group.
2
In the Settings window for Evaluation Group, type Displacement Uniformity Factor in the Label text field.
Global Evaluation 1
1
Right-click Displacement Uniformity Factor and choose Global Evaluation.
2
In the Settings window for Global Evaluation, locate the Expressions section.
3
In the table, enter the following settings:
Expression
Unit
Description
aveop1(w)/minop1(w)
1

4
In the Description text field, type Displacement uniformity factor.
5
In the Displacement Uniformity Factor toolbar, click  Evaluate.
Set up an Eigenfrequency study to search for an eigenfrequency around 7.5 MHz.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select Preset Studies for Selected Multiphysics > Eigenfrequency.
4
Click the Add Study button in the window toolbar.
5
In the Home toolbar, click  Add Study to close the Add Study window.
Study 2
Step 1: Eigenfrequency
1
In the Settings window for Eigenfrequency, locate the Study Settings section.
2
Select the Desired number of eigenfrequencies checkbox. In the associated text field, type 1.
3
From the Unit list, choose MHz.
4
In the Search for eigenfrequencies around shift text field, type 7.5.
5
In the Model Builder window, click Study 2.
6
In the Settings window for Study, locate the Study Settings section.
7
Clear the Generate default plots checkbox.
8
In the Study toolbar, click  Compute.
From the results of Study 2, plot the eigenmode.
Results
Eigenmode
1
In the Results toolbar, click  3D Plot Group.
2
In the Settings window for 3D Plot Group, type Eigenmode in the Label text field.
3
Locate the Data section. From the Dataset list, choose Study 2/Solution 3 (sol3).
4
From the Eigenfrequency (MHz) list, choose 7.5003.
Volume 1
1
Right-click Eigenmode and choose Volume.
2
In the Settings window for Volume, click Replace Expression in the upper-right corner of the Expression section. From the menu, choose Component 1 (comp1) > Solid Mechanics > Displacement > solid.disp - Displacement magnitude - m.
3
Locate the Expression section. Select the Description checkbox.
4
Locate the Coloring and Style section. From the Color table list, choose RainbowLight.
5
In the Eigenmode toolbar, click  Plot.
