Force Calculation 2 — Magnetic Force BEM FEM
Introduction
A common way to determine electromagnetic forces on a (rigid) body, is to integrate the stresses originating from jumps in the electromagnetic field on its exterior surface. These stresses can be expressed by means of the Maxwell surface stress tensor1. In case of magnetostatics, the surface stress tensor is based directly on the magnetic flux density B and the magnetic field H on the boundary. Therefore, an accurate force computation requires accurate knowledge of the boundary fluxes.
Within the context of the magnetic scalar potential formulation2, it makes sense to do a comparison between the boundary element method (BEM) and the finite element method (FEM). As opposed to the finite element method, for the boundary element method the flux normal to the boundary enters the equations directly as a degree of freedom. This allows for accurate flux computations without the need for reaction force integrals or weak constraints3. It is a potential advantage when doing force calculations.
In order to investigate the accuracy and general behavior of both methods, conditions are chosen for which the analytical solution is known. The results are analyzed, and mesh convergence is investigated by checking the behavior for different mesh sizes.
Model Definition
This verification model treats the case of two parallel magnetized rods of one meter length, placed one meter apart (see Figure 1). The relative permeability is assumed to be one everywhere. The remanent flux density Br inside the rods is chosen such that the analytical model predicts a repelling force between the two rods, of one newton exactly.
The analytical model
When comparing the electric potential V, the magnetic scalar potential Vm, the electric field E and the magnetic field H, there are many similarities between a hard magnet and a capacitor under stationary conditions. In this analogy, a magnet is considered to be a device with a positive and negative magnetic charge accumulated at the poles (see Figure 1). The magnetic field H flows from the north to the south pole, both inside the magnet as well as in the domains surrounding the magnet (as the electric field E would do for the capacitor).
Figure 1: Two parallel magnetized rods placed one meter apart. The situation is described analytically by means of four magnetic point charges forming a square.
The magnetic flux density B on the other hand, flows from south to north inside the magnet (since the magnetic flux density is conserved: ). The difference in direction between H and B inside the magnet is accounted for by the remanent flux density Br, that is:
(1)
inside the magnet. This remanent flux density is directly proportional to the hypothetical magnetic charge density at the poles, in webers per square meter (Wb/m2).
The advantage of having such an analogue is that we can take a well-known electrostatics case, and use it for our analytical magnetostatics model. Using Coulomb's law, one may express the force F between two point charges qe1 and qe2 in a vacuum, at a distance r apart:
(2)
where ε0 refers to the permittivity of free space. In SI units, the magnetic analogue amounts to:
(3)
This expression suggests that for a force of exactly one newton, one needs to place two charges (in webers) at a distance of one meters apart4.
However, as magnetic poles always come in pairs, we will have four point charges. The point charges form a square with sides of one meter length. That is, we will be considering two parallel magnetized rods of one meter length, at a distance of one meter apart. When giving the rods a thickness that is small compared to the other distances involved, the point charge becomes an accurate approximation for the rods poles.
Now, one pole of the first rod will perceive one pole of the second rod at a distance of one meter, resulting in a repelling force of one newton. It will also perceive the second rods counterpole, however, at a distance of meters. This results in a second, attractive force of −0.5 newtons at an angle that deviates 45° with respect to the first considered force.
In addition to this, the first rod has a counterpole too. The force on the rod as a whole equals the sum of the forces on both poles. Taking the directions of the different force contributions into account, the force between the two rods will be times the intended one newton. To compensate for this the expression used for the magnetic charge is equipped with a correction term:
(4)
Finally, the remanent flux density needed in the rods in order to achieve a repelling force of one newton, is given by:
(5)
where Ap refers to the surface area of the poles, perpendicular to the remanent flux field. This is all assuming the relative permeability equals one everywhere.
Modeling Approach
After setting up the general problem (geometry, physics, mesh, and such), two studies are performed. The first one focuses on the performance of the boundary element method alone. The second one repeats a similar investigation for a combined FEM-BEM model, where the finite element method is used to model the rods and their direct vicinity (marked as solid domains5, see Figure 2).
Both studies use the same geometry. The geometry contains only one rod, the second one is included by means of a symmetry condition. Enclosing the rod there is a force probe surface (for accurate force calculation, see On Auxiliary Surfaces). Both the rod and the probe are contained in a solid semisphere.
Figure 2: A 2D representation of the used geometry. The solid parts are solved for using both FEM and BEM. The void is solved using the BEM only.

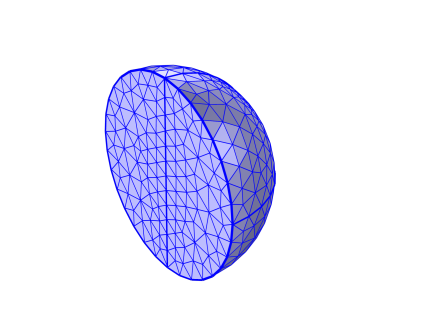

The mesh for the two studies is different. The first study uses a boundary mesh only, for the exterior surface of the rod and its accompanying force probe. For the second study a volumetric mesh is added to the solid domains, as this is required for solving with the finite element method. Both studies use a parametric sweep to refine the mesh near the poles (see On Mesh Convergence Studies).
The results are investigated on the poles and on the force probe surface. Both for the BEM model as well as the combined FEM-BEM model, the total force is determined as a function of the mesh refinement parameter.
On Auxiliary Surfaces
The total force on the rod is determined by integrating the Maxwell surface stress tensor over its exterior boundaries. As the fields near the poles will be highly concentrated, so will the stress tensor. The quantity entering the boundary integral will therefore be concentrated in a few mesh elements only, with a value close to zero everywhere else. These conditions result in poor numerical accuracy.
If there is enough space around the body of interest, one alternative is to introduce an auxiliary surface enclosing it while keeping a certain distance (in this model, referred to as a force probe surface). Since the singular behavior that occurs near the poles fades away at a distance, the stress tensor behaves more nicely here. The resulting integral is much more accurate.
On Mesh Convergence Studies
A mesh convergence study typically refines the mesh in some region that is considered to be important. During postprocessing, the behavior of the result as a function of mesh refinement is analyzed. The general assumption is that a well-behaved model (one that does not contain singularities and such) will approach the “true” solution, as the mesh is further refined. Consequently, for any particular mesh, the mesh convergence study gives an indication as to the margin of error that may be expected.
You could interpret the mesh as the finite numerical resolution6 if you will, not to be confused with approximations done in the model itself. For example, the analytical model approximates the poles using point charges. This implies the rod is considered to be infinitely thin. As the actual rod used in the model has a finite thickness, the results will never perfectly correspond to the analytical model, even when using an infinitely fine mesh.
Results and Discussion
Mesh Convergence Study BEM
During the first study, an inspection of the Maxwell surface stress tensor on the rods poles shows that the boundary element method is capable of producing smooth fields, even for relatively coarse meshes (see Figure 3).
Figure 3: The Maxwell surface stress tensor at the rods pole, when using the boundary element method and a mesh scaling factor of one half.
Furthermore, the stresses are strongly concentrated on the fillets. This effect becomes more pronounced the smaller the radius of the fillet becomes. Without the fillet, the stress tensor would reach a singularity even. This is the reason why force calculations on bodies with sharp edges are generally inaccurate7.
On the force probe surface, the results are more smooth (that is, less erratic and distributed over a larger surface area). The scale reaches a value of about 8.4 N/m2, as opposed to the value of ~5·104 N/m2 for the pole surface (see Figure 4).
Figure 4: The Maxwell surface stress tensor on the force probe surface.
When using the BEM and integrating over the rods exterior, one finds for the calculated total force, an error of about ~0.7% to ~30% (depending on the mesh scaling parameter, see Figure 5). The force calculated using the force probe surface is generally more accurate, at about ~0.2%. These are decent figures for a numerical model like this, certainly when considering the analytical model isn’t a hundred percent accurate either.
Mesh Convergence Study FEM
During the second study, an inspection of the stress tensor on the rods poles shows singularities for low values of the mesh scaling factor hf. This is partly due to some of the mesh elements becoming linearized8. The linearized mesh elements are caused by the tetrahedra enclosing the curved surface (the tetrahedra are needed for solving with the FEM).
When comparing the total force to the analytical model, an integration of the stress tensor over the rods surface gives an error that converges from somewhere in the interval 200–900% to about ~10%, depending on hf. Again, the force probe surface gives a more accurate value, at about ~1%.

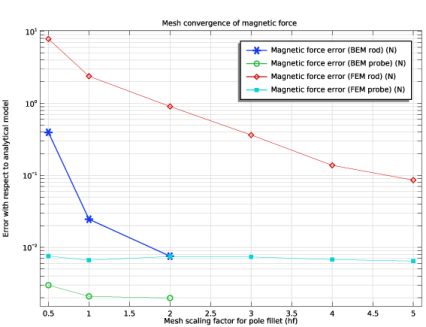

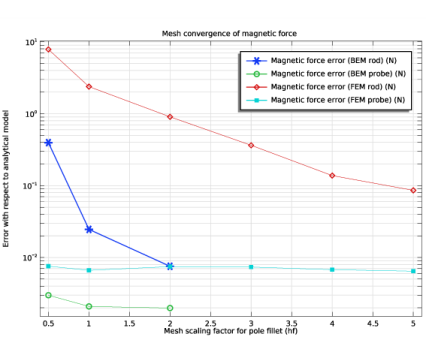

Figure 5: The error with respect to the analytical model, for both the rod surface integral and the probe surface integral, for both the BEM- and the combined FEM-BEM model.
Application Library path: ACDC_Module/Verification,_Forces/force_calculation_02_magnetic_force_bem
Modeling Instructions
This first section discusses how to set up the geometry, the selections, the physics, and the mesh. The actual studies are performed in sections Modeling Instructions — Mesh Convergence Study BEM, and Modeling Instructions — Mesh Convergence Study FEM.
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select AC/DC>Magnetic Fields, No Currents>Magnetic Fields, No Currents, Boundary Elements (mfncbe).
3
Click Add.
4
In the Select Physics tree, select AC/DC>Magnetic Fields, No Currents>Magnetic Fields, No Currents (mfnc).
5
Click Add.
6
In the Select Physics tree, select AC/DC>Magnetic Fields, No Currents>Magnetic Fields, No Currents, Boundary Elements (mfncbe).
7
Click Add.
8
Click  Study.
9
In the Select Study tree, select General Studies>Stationary.
10
Click  Done.
Geometry 1
As the main focus will be on the physics and numerics, a detailed treatment of the geometry building procedure lies outside the scope of this tutorial. Instead, the geometry has been prepared in the file force_calculation_01_introduction.mph. You can start by inserting the geometry sequence from that file.
1
In the Geometry toolbar, click  Insert Sequence.
2
Browse to the model’s Application Libraries folder and double-click the file force_calculation_01_introduction.mph.
3
In the Insert Sequence from File dialog box, select Geometry 1 (Magnetic Force Verification) in the Select geometry sequence to insert list.
4
Click OK.
Form Union (fin)
1
In the Geometry toolbar, click  Build All.
2
Click the  Wireframe Rendering button in the Graphics toolbar.
3
Click the  Zoom Extents button in the Graphics toolbar.
You now have built the geometry. It contains a single rod inside a semisphere. The semisphere represents the boundary between the Magnetic Fields, No Currents interface, and the Magnetic Fields, No Currents, Boundary Elements 2 interface (see Figure 2). Notice that the model itself considers two rods; the second rod will be included by means of a symmetry condition in the physics.
The modeling instructions for this geometry can be found in the Introduction tutorial (that is, the first model in this force verification series), section Modeling Instructions — Magnetic Force Verification Geometry.
If you have limited interest in manually building geometries in COMSOL Multiphysics (because you intend to use CAD software for example), feel free to proceed with setting the parameters and selections. If you are new to COMSOL however, it may be worthwhile to take some time and have a look at the instructions in the Introduction tutorial, as it will help you get familiar with the basics.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
Notice that the parameter list has been populated already. These four parameters (Rl, Rd, Rr, and Rrf) have been imported automatically, together with the geometry sequence that is based on them.
3
Click  Load from File.
4
Browse to the model’s Application Libraries folder and double-click the file force_calculation_b_mforce_parameters.txt.
Five more items have been added to the list. The first two of these are related to the mesh and the geometry. The last three represent the analytical model used to set the correct remanent flux density. The parameters qm and Brz follow from Equation 4 and Equation 5 respectively.
Next will be some selections. These selections will be used later on, when assigning domain features or building the mesh for instance.
In order to make life easier, you can define the selections by typing or pasting their list of entity numbers (as seen in the instructions for Explicit 3). If you want to practice using the selection tools in the Graphics window, you should try to reproduce the images and check whether the list of selected entities turns up the same (for details on selecting, panning and zooming, please consult the reference manual).
Definitions
Magnetized Rod Domain
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Magnetized Rod Domain in the Label text field.
3
Select Domains 3 and 4 only.
4
Click the  Zoom to Selection button in the Graphics toolbar.
Magnetized Rod Surface
1
In the Definitions toolbar, click  Adjacent.
2
In the Settings window for Adjacent, type Magnetized Rod Surface in the Label text field.
3
Locate the Input Entities section. Under Input selections, click  Add.
4
In the Add dialog box, select Magnetized Rod Domain in the Input selections list.
5
Click OK.
Magnetized Rod Pole Surface
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Magnetized Rod Pole Surface in the Label text field.
3
Locate the Output Entities section. From the Output entities list, choose Adjacent boundaries.
4
Select Domain 4 only.
5
Click the  Zoom to Selection button in the Graphics toolbar.
Magnetized Rod Pole Fillet
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Magnetized Rod Pole Fillet in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Click  Paste Selection.
5
In the Paste Selection dialog box, type 15, 16, 21, 22, 31, 34, 42, 43 in the Selection text field (that is, the boundaries comprising the pole fillets).
6
Click OK.
7
Click the  Zoom to Selection button in the Graphics toolbar.
Force Probe Domain
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type Force Probe Domain in the Label text field.
3
Select Domains 2–4 only (that is, both the magnetized rod, as well as the domain enclosing it).
4
Click the  Zoom to Selection button in the Graphics toolbar.
Force Probe Surface
1
In the Definitions toolbar, click  Adjacent.
2
In the Settings window for Adjacent, type Force Probe Surface in the Label text field.
3
Locate the Input Entities section. Under Input selections, click  Add.
4
In the Add dialog box, select Force Probe Domain in the Input selections list.
5
Click OK.
FEM-BEM Interface
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type FEM-BEM Interface in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Select the Group by continuous tangent check box.
5
Select Boundaries 2, 3, 5, and 6 only.
6
Click the  Zoom to Selection button in the Graphics toolbar.
For this last selection, notice the effect of the Group by continuous tangent check box: clicking any of the boundaries 2, 3, 5, and 6, will automatically select the others too.
Materials
For this model we only have one material, with a relative permeability of one everywhere. Please make sure the material selection is set to All domains and voids. Here, a “void” represents a domain that will not be meshed. Still, the boundary element method is able to solve for it. This is one of the main advantages of the BEM, when compared to the finite element method (for more information on this, please consult the reference manual).
Material 1 (mat1)
1
In the Model Builder window, under Component 1 (comp1) right-click Materials and choose Blank Material.
2
In the Settings window for Material, locate the Geometric Entity Selection section.
3
From the Selection list, choose All domains and voids.
4
Locate the Material Contents section. In the table, enter the following settings:
Property
Variable
Value
Unit
Relative permeability
mur_iso ; murii = mur_iso, murij = 0
1
1
Magnetic Fields, No Currents, Boundary Elements (mfncbe)
Now that the materials have been set and double-checked, let us have a look at the physics. The first physics interface, Magnetic Fields, No Currents, Boundary Elements, is used for solving the entire model using the boundary element method only. The second and third interface will be coupled. Magnetic Fields, No Currents will solve a finite element problem in the rods and their direct vicinity. Magnetic Fields, No Currents, Boundary Elements 2 will solve a boundary element problem for the infinite void (see Figure 2).
Start by enabling the symmetry condition, adjusting the far-field approximation tolerance and setting the magnetic potential at infinity to zero.
1
In the Model Builder window, under Component 1 (comp1) click Magnetic Fields, No Currents, Boundary Elements (mfncbe).
2
In the Settings window for Magnetic Fields, No Currents, Boundary Elements, click to expand the Symmetry section.
3
From the Condition for the x = x^0 plane list, choose Symmetric.
4
Click the  Show More Options button in the Model Builder toolbar.
5
In the Show More Options dialog box, in the tree, select the check box for the node Physics>Advanced Physics Options.
6
Click OK.
7
In the Settings window for Magnetic Fields, No Currents, Boundary Elements, click to expand the Far-Field Approximation section.
8
In the Relative tolerance text field, type 1e-6.
9
Click to expand the Infinity Condition section. From the Infinity condition list, choose Zero magnetic scalar potential at infinity.
Setting the potential at infinity to zero provides a fixed reference point and makes the magnetic scalar field unique. Reducing the relative tolerance for the far-field approximation improves the accuracy of the BEM solution, without hindering performance too much (for more information on the far-field approximation settings, please consult the reference manual or use context help).
Next, add separate flux conservation features for the force probe domain and the magnetized rod. This will allow for determining the Maxwell surface stress tensor on their exterior boundaries.
Magnetic Flux Conservation 2
1
In the Physics toolbar, click  Domains and choose Magnetic Flux Conservation.
2
In the Settings window for Magnetic Flux Conservation, locate the Domain Selection section.
3
From the Selection list, choose Force Probe Domain.
4
Click the  Zoom to Selection button in the Graphics toolbar.
Magnetic Flux Conservation 3
1
In the Physics toolbar, click  Domains and choose Magnetic Flux Conservation.
2
In the Settings window for Magnetic Flux Conservation, locate the Domain Selection section.
3
From the Selection list, choose Magnetized Rod Domain.
4
Locate the Constitutive Relation B-H section. From the Magnetization model list, choose Remanent flux density.
5
From the  ||  B r   ||  list, choose User defined. In the associated text field, type Brz.
6
Specify the e vector as
0
x
0
y
1
z
Observe that the second magnetic flux conservation feature partly overrides the first one. Therefore, it is important to have them in this order: the probe domain first, the rod domain second. For the force calculation features the order is less important.
Force Calculation 1
1
In the Physics toolbar, click  Domains and choose Force Calculation.
2
In the Settings window for Force Calculation, locate the Domain Selection section.
3
From the Selection list, choose Magnetized Rod Domain.
4
Locate the Force Calculation section. In the Force name text field, type BEM_rod.
Force Calculation 2
1
In the Physics toolbar, click  Domains and choose Force Calculation.
2
In the Settings window for Force Calculation, locate the Domain Selection section.
3
From the Selection list, choose Force Probe Domain.
4
Locate the Force Calculation section. In the Force name text field, type BEM_probe.
These force calculation features provide the machinery for automated force calculation. The total force on the chosen domain selection will be determined by integrating the stress tensor over its exterior boundaries.
The next two interfaces will essentially perform the same simulation as the first one. Observe that the Magnetic Fields, No Currents interface does not need a zero potential constraint (since it will be coupled). In addition to this, there is no need for a dedicated symmetry setting, as the default Magnetic Insulation condition already provides a form of symmetry.
What remains are the settings for the remanent flux density and the force calculation features. Proceed by adding them.
Magnetic Fields, No Currents (mfnc)
In the Model Builder window, under Component 1 (comp1) click Magnetic Fields, No Currents (mfnc).
Magnetic Flux Conservation 2
1
In the Physics toolbar, click  Domains and choose Magnetic Flux Conservation.
2
In the Settings window for Magnetic Flux Conservation, locate the Domain Selection section.
3
From the Selection list, choose Magnetized Rod Domain.
4
Locate the Constitutive Relation B-H section. From the Magnetization model list, choose Remanent flux density.
5
From the  ||  B r   ||  list, choose User defined. In the associated text field, type Brz.
6
Specify the e vector as
0
x
0
y
1
z
Notice that the finite element method does not need a separate flux conservation feature for the probe domain. This is because for the FEM, all boundaries within the physics domain selection will be equipped with the appropriate boundary variable definitions by default (the surface stress tensor in this case). The BEM on the other hand, only defines these variables for the boundaries that it solves for.
Force Calculation 1
1
In the Physics toolbar, click  Domains and choose Force Calculation.
2
In the Settings window for Force Calculation, locate the Domain Selection section.
3
From the Selection list, choose Magnetized Rod Domain.
4
Locate the Force Calculation section. In the Force name text field, type FEM_rod.
Force Calculation 2
1
In the Physics toolbar, click  Domains and choose Force Calculation.
2
In the Settings window for Force Calculation, locate the Domain Selection section.
3
From the Selection list, choose Force Probe Domain.
4
Locate the Force Calculation section. In the Force name text field, type FEM_probe.
Magnetic Fields, No Currents, Boundary Elements 2 (mfncbe2)
The last interface just solves for the infinite void. You could consider it an alternative to the Infinite Elements domain.
1
In the Model Builder window, under Component 1 (comp1) click Magnetic Fields, No Currents, Boundary Elements 2 (mfncbe2).
2
In the Settings window for Magnetic Fields, No Currents, Boundary Elements, locate the Domain Selection section.
3
From the Selection list, choose All voids.
4
Locate the Symmetry section. From the Condition for the x = x^0 plane list, choose Symmetric.
5
Locate the Infinity Condition section. From the Infinity condition list, choose Zero magnetic scalar potential at infinity.
Multiphysics
Magnetic Scalar-Scalar Potential Coupling 1 (msspc1)
1
In the Physics toolbar, click  Multiphysics Couplings and choose Boundary>Magnetic Scalar-Scalar Potential Coupling.
2
In the Settings window for Magnetic Scalar-Scalar Potential Coupling, locate the Coupled Interfaces section.
3
From the Secondary interface (magnetic scalar potential) list, choose Magnetic Fields, No Currents, Boundary Elements 2 (mfncbe2).
4
Locate the Boundary Selection section. From the Selection list, choose FEM-BEM Interface.
5
Click the  Zoom to Selection button in the Graphics toolbar.
This coupling constrains the difference between the FEM scalar potential and the BEM scalar potential to zero on the boundary (that is, it makes them equal). Please make sure that the symmetry plane is not part of the coupling feature’s boundary selection.
Mesh 1
Next will be a manual mesh. Special care is taken to create a fine mesh for the fillets on the magnetized rod.
Free Triangular 1
1
In the Mesh toolbar, click  Boundary and choose Free Triangular.
2
In the Settings window for Free Triangular, locate the Boundary Selection section.
3
From the Selection list, choose Magnetized Rod Surface.
Size 1
1
Right-click Free Triangular 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Selection list, choose Magnetized Rod Pole Fillet.
4
Locate the Element Size section. Click the Custom button.
5
Locate the Element Size Parameters section. Select the Maximum element size check box.
6
In the associated text field, type Rrf/hf.
7
Click  Build All.
Notice that the mesh uses the parameter hf. Setting this parameter from 1 to 2 and so on, refines the mesh on the fillet. This will be of particular interest during the mesh convergence studies.
Free Triangular 2
1
In the Mesh toolbar, click  Boundary and choose Free Triangular.
2
In the Settings window for Free Triangular, locate the Boundary Selection section.
3
From the Selection list, choose Force Probe Surface.
Size 1
1
Right-click Free Triangular 2 and choose Size.
2
In the Settings window for Size, locate the Element Size section.
3
Click the Custom button.
4
Locate the Element Size Parameters section. Select the Maximum element size check box.
5
In the associated text field, type Rr.
6
Click  Build All.
7
Click the  Zoom to Selection button in the Graphics toolbar.
As the force probe surface mesh does not depend on the parameter hf, it will not vary during the mesh convergence study.
Modeling Instructions — Mesh Convergence Study BEM
Study 1
A mesh convergence study typically investigates the behavior of the result as a function of mesh refinement (see section On Mesh Convergence Studies). For any particular mesh, the mesh convergence study gives an indication as to the margin of error that may be expected.
1
In the Model Builder window, click Study 1.
2
In the Settings window for Study, locate the Study Settings section.
3
Clear the Generate default plots check box.
Parametric Sweep
1
In the Study toolbar, click  Parametric Sweep.
2
In the Settings window for Parametric Sweep, locate the Study Settings section.
3
Click  Add.
4
In the table, enter the following settings (make sure the parameter unit is cleared):
Parameter name
Parameter value list
Parameter unit
hf (Mesh scaling factor for pole fillet)
0.5 1 2

Step 1: Stationary
1
In the Model Builder window, click Step 1: Stationary.
2
In the Settings window for Stationary, locate the Physics and Variables Selection section.
3
In the tables, enter the following settings:
Physics interface, Multiphysics couplings
Solve for
Magnetic Fields, No Currents, Boundary Elements (mfncbe)
Yes
Magnetic Fields, No Currents (mfnc)
No
Magnetic Fields, No Currents, Boundary Elements 2 (mfncbe2)
No
Magnetic Scalar-Scalar Potential Coupling 1 (msspc1)
No
Before hitting compute, it is recommended to save your model.
Solving should take about 6 minutes on an average desktop machine. The required RAM is somewhere around 6 GB. If the model is too demanding for your current setup, consider changing the parameter setting hf from 0.5 1 2, to 0.5 1 (that is, solving for the coarser meshes only).
4
In the Study toolbar, click  Compute.
Results
The first plot group considers the norm of the surface stress tensor on the poles. The stress tensor plot will be combined with a mesh plot, to show the relation between the mesh and the resulting fields. Start by adding a new plot group.
Maxwell Surface Stress Tensor (BEM Rod)
1
In the Home toolbar, click  Add Plot Group and choose 3D Plot Group.
2
In the Settings window for 3D Plot Group, type Maxwell Surface Stress Tensor (BEM Rod) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Study 1/Parametric Solutions 1 (sol2).
4
From the Parameter value (hf) list, choose 0.5.
5
Locate the Plot Settings section. Clear the Plot dataset edges check box.
6
Click to expand the Selection section. From the Geometric entity level list, choose Boundary.
7
From the Selection list, choose Magnetized Rod Pole Surface.
Surface 1
1
Right-click Maxwell Surface Stress Tensor (BEM Rod) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type sqrt(mfncbe.nTx_BEM_rod^2+mfncbe.nTy_BEM_rod^2+mfncbe.nTz_BEM_rod^2).
Notice that for longer expressions like this one, the easiest way to go, is to copy-paste them directly from this *.pdf file to COMSOL.
Variables like mfncbe.nTx_BEM_rod have been generated by the force calculation features. You can find them using the buttons in the top-right corner of the Expression section, just above the text input field for the expression. There is some autocomplete functionality too (try hitting Ctrl+Space, when having focus in the text input field).
4
Select the Description check box.
5
In the associated text field, type Maxwell surface stress tensor norm.
6
In the Maxwell Surface Stress Tensor (BEM Rod) toolbar, click  Plot.
7
Click the  Zoom Extents button in the Graphics toolbar.
Surface 2
1
In the Model Builder window, right-click Maxwell Surface Stress Tensor (BEM Rod) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type 0.
4
Click to expand the Title section. From the Title type list, choose None.
5
Locate the Coloring and Style section. From the Coloring list, choose Uniform.
6
From the Color list, choose Black.
7
Select the Wireframe check box.
8
In the Maxwell Surface Stress Tensor (BEM Rod) toolbar, click  Plot.
One of the things to notice, is that the solution depends on the chosen mesh. Feel free to investigate the plot for different values of the mesh scaling factor hf.
Next, create a plot for the surface stress tensor on the force probe surface.
Maxwell Surface Stress Tensor (BEM Probe)
1
In the Home toolbar, click  Add Plot Group and choose 3D Plot Group.
2
In the Settings window for 3D Plot Group, type Maxwell Surface Stress Tensor (BEM Probe) in the Label text field.
Since the probe surface is much larger than the rod pole, it is convenient to have two separate views. This way, the first view can be kept zoomed in on the pole, while the second one focuses on the probe. Using a single view for both, would result in having to adjust the camera settings, every time when switching between the first and second plot group.
3
Locate the Plot Settings section. From the View list, choose New view.
Surface 1
1
Right-click Maxwell Surface Stress Tensor (BEM Probe) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type sqrt(mfncbe.nTx_BEM_probe^2+mfncbe.nTy_BEM_probe^2+mfncbe.nTz_BEM_probe^2).
4
Select the Description check box.
5
In the associated text field, type Maxwell surface stress tensor norm.
6
In the Maxwell Surface Stress Tensor (BEM Probe) toolbar, click  Plot.
7
Click the  Zoom Extents button in the Graphics toolbar.
The field is more smooth here. The scale reaches a value of about 8.4 N/m2, as opposed to the value of ~5·104 N/m2 for the pole surface.
Finally, evaluate the error for the total force as a function of hf. The error norm  || δ ||  is expressed in terms of the norm of the difference between the calculated force vector F and the analytical result f, that is:  || δ ||  = ((Fx − fx)2 + (Fy − fy)2 + (Fz − fz)2)1/2.
In this case, for the analytical result we have f = [1,0,0]T. Notice that since the analytical result has a magnitude of one, the error can be interpreted both as a relative (dimensionless) error, or as an absolute error (in Newtons).
Global Evaluation 1
1
In the Results toolbar, click  Global Evaluation.
2
In the Settings window for Global Evaluation, locate the Data section.
3
From the Dataset list, choose Study 1/Parametric Solutions 1 (sol2).
4
Locate the Expressions section. In the table, enter the following settings:
Expression
Description
sqrt((mfncbe.Forcex_BEM_rod-1[N])^2+mfncbe.Forcey_BEM_rod^2+mfncbe.Forcez_BEM_rod^2)
Magnetic force error (BEM rod)
sqrt((mfncbe.Forcex_BEM_probe-1[N])^2+mfncbe.Forcey_BEM_probe^2+mfncbe.Forcez_BEM_probe^2)
Magnetic force error (BEM probe)
5
Click  Evaluate.
Table
1
Go to the Table window.
For the BEM rod, the error should be about ~0.7% to ~30%, depending on hf. The BEM probe result is generally more accurate, at about ~0.2%.
Modeling Instructions — Mesh Convergence Study FEM
Mesh 1
For this part, the finite element interface Magnetic Fields, No Currents is used. Therefore, some domains will have to be meshed using a tetrahedral mesh (indicated with “solid” in Figure 2). Start by creating a duplicate of the BEM mesh.
In the Model Builder window, under Component 1 (comp1) right-click Mesh 1 and choose Duplicate.
Mesh 2
Free Tetrahedral 1
1
In the Mesh toolbar, click  Free Tetrahedral.
2
In the Model Builder window, right-click Free Tetrahedral 1 and choose Build All.
3
Click the  Zoom to Selection button in the Graphics toolbar.
Next, add a new study, specifically for the two coupled physics interfaces.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Physics interfaces in study and Multiphysics couplings in study subsections. In the tables, enter the following settings:
Physics interface, Multiphysics couplings
Solve for
Magnetic Fields, No Currents, Boundary Elements (mfncbe)
No
Magnetic Fields, No Currents (mfnc)
Yes
Magnetic Fields, No Currents, Boundary Elements 2 (mfncbe2)
Yes
Magnetic Scalar-Scalar Potential Coupling 1 (msspc1)
Yes
4
Find the Studies subsection. In the Select Study tree, select General Studies>Stationary.
5
Right-click and choose Add Study.
6
In the Home toolbar, click  Add Study to close the Add Study window.
Study 2
1
In the Settings window for Study, locate the Study Settings section.
2
Clear the Generate default plots check box.
Parametric Sweep
1
In the Study toolbar, click  Parametric Sweep.
2
In the Settings window for Parametric Sweep, locate the Study Settings section.
3
Click  Add.
4
In the table, enter the following settings (make sure the parameter unit is cleared):
Parameter name
Parameter value list
Parameter unit
hf (Mesh scaling factor for pole fillet)
0.5 1 2 3 4 5

Step 1: Stationary
Before hitting compute, it is recommended to save your model.
Solving should take about 2 minutes on an average desktop machine. The required RAM is somewhere around 5 GB. If the model is too demanding for your current setup, consider changing the parameter setting hf from 0.5 1 2 3 4 5, to 0.5 1 2 3 (that is, solving for the coarser meshes only).
1
In the Study toolbar, click  Compute.
Results
The next plot group will be about the norm of the surface stress tensor on the poles (in the same fashion as done for the BEM study).
Maxwell Surface Stress Tensor (FEM Rod)
1
In the Home toolbar, click  Add Plot Group and choose 3D Plot Group.
2
In the Settings window for 3D Plot Group, type Maxwell Surface Stress Tensor (FEM Rod) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Study 2/Parametric Solutions 2 (sol7).
4
Locate the Plot Settings section. Clear the Plot dataset edges check box.
5
Locate the Selection section. From the Geometric entity level list, choose Boundary.
6
From the Selection list, choose Magnetized Rod Pole Surface.
Surface 1
1
Right-click Maxwell Surface Stress Tensor (FEM Rod) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type sqrt(mfnc.nTx_FEM_rod^2+mfnc.nTy_FEM_rod^2+mfnc.nTz_FEM_rod^2).
4
Select the Description check box.
5
In the associated text field, type Maxwell surface stress tensor norm.
6
In the Maxwell Surface Stress Tensor (FEM Rod) toolbar, click  Plot.
7
Click the  Zoom Extents button in the Graphics toolbar.
Surface 2
1
In the Model Builder window, right-click Maxwell Surface Stress Tensor (FEM Rod) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type 0.
4
Locate the Title section. From the Title type list, choose None.
5
Locate the Coloring and Style section. From the Coloring list, choose Uniform.
6
From the Color list, choose Black.
7
Select the Wireframe check box.
8
In the Maxwell Surface Stress Tensor (FEM Rod) toolbar, click  Plot.
Again, feel free to investigate the plot for different values of the mesh scaling factor hf.
Next, create a plot for the surface stress tensor on the force probe surface.
Maxwell Surface Stress Tensor (FEM Probe)
1
In the Home toolbar, click  Add Plot Group and choose 3D Plot Group.
2
In the Settings window for 3D Plot Group, type Maxwell Surface Stress Tensor (FEM Probe) in the Label text field.
3
Locate the Data section. From the Dataset list, choose Study 2/Solution 6 (sol6).
Select a suitable view (notice that this view has been created when selecting a new view for the second plot group).
4
Locate the Plot Settings section. From the View list, choose View 3D 4.
Surface 1
1
Right-click Maxwell Surface Stress Tensor (FEM Probe) and choose Surface.
2
In the Settings window for Surface, locate the Expression section.
3
In the Expression text field, type sqrt(mfnc.nTx_FEM_probe^2+mfnc.nTy_FEM_probe^2+mfnc.nTz_FEM_probe^2).
4
Select the Description check box.
5
In the associated text field, type Maxwell surface stress tensor norm.
6
In the Maxwell Surface Stress Tensor (FEM Probe) toolbar, click  Plot.
7
Click the  Zoom Extents button in the Graphics toolbar.
Notice that just as for the BEM study, the field is more smooth here.
Evaluate the error for the total force as a function of hf. Since the analytical result has a magnitude of one, the error can be interpreted both as a relative (dimensionless) error, or as an absolute error (in Newtons).
Global Evaluation 2
1
In the Results toolbar, click  Global Evaluation.
2
In the Settings window for Global Evaluation, locate the Data section.
3
From the Dataset list, choose Study 2/Parametric Solutions 2 (sol7).
4
Locate the Expressions section. In the table, enter the following settings:
Expression
Description
sqrt((mfnc.Forcex_FEM_rod-1[N])^2+mfnc.Forcey_FEM_rod^2+mfnc.Forcez_FEM_rod^2)
Magnetic force error (FEM rod)
sqrt((mfnc.Forcex_FEM_probe-1[N])^2+mfnc.Forcey_FEM_probe^2+mfnc.Forcez_FEM_probe^2)
Magnetic force error (FEM probe)
5
Click  Evaluate.
Table
1
Go to the Table window.
For the FEM rod, the error should converge from somewhere in the interval 200–900% to about ~10%, depending on hf. Again, the FEM probe result is generally more accurate, at about ~1%.
Results
Finally, create a table graph in order to show these results in a more comprehensible form.
Magnetic Force Error
1
In the Results toolbar, click  1D Plot Group.
2
In the Settings window for 1D Plot Group, type Magnetic Force Error in the Label text field.
3
Click to expand the Title section. From the Title type list, choose Manual.
4
In the Title text area, type Mesh convergence of magnetic force.
5
Locate the Plot Settings section. Select the x-axis label check box.
6
In the associated text field, type Mesh scaling factor for pole fillet (hf).
7
Select the y-axis label check box.
8
In the associated text field, type Error with respect to analytical model.
Table Graph 1
1
Right-click Magnetic Force Error and choose Table Graph.
2
In the Settings window for Table Graph, locate the Coloring and Style section.
3
Find the Line markers subsection. From the Marker list, choose Cycle.
4
From the Positioning list, choose In data points.
5
Click to expand the Legends section. Select the Show legends check box.
6
In the Magnetic Force Error toolbar, click  Plot.
Table Graph 2
1
In the Model Builder window, right-click Magnetic Force Error and choose Table Graph.
2
In the Settings window for Table Graph, locate the Data section.
3
From the Table list, choose Table 2.
4
Locate the Coloring and Style section. Find the Line markers subsection. From the Marker list, choose Cycle.
5
From the Positioning list, choose In data points.
6
Locate the Legends section. Select the Show legends check box.
7
In the Magnetic Force Error toolbar, click  Plot.
8
Click the  y-Axis Log Scale button in the Graphics toolbar.
Observe that the log scale is a very effective tool for displaying convergence behavior. Without it, only the “FEM rod” curve would be clearly distinguishable from the others.
In conclusion, these results show great potential for the boundary element method, even though its implementation in COMSOL Multiphysics is fairly new.
You have now completed this tutorial, subsequent tutorials will refer to the resulting file as force_calculation_02_magnetic_force_bem.mph.

1
For more information about the Maxwell surface stress tensor, see the chapter on Electromagnetic Forces in the AC/DC Module User’s Guide.

2
This is the formulation used by the Magnetic Fields, No Currents and the Magnetic Fields, No Currents, Boundary Elements interfaces. For more information on this formulation, see the AC/DC Module User’s Guide.

3
For more information on flux computation methods, see the chapter Computing Accurate Fluxes in the COMSOL Multiphysics Reference Manual.

4
Notice that in SI units, there are two conflicting units in use for the magnetic charge: webers and ampere-meters. If one would choose to use ampere-meters instead, Equation 3 would feature μ0 in the numerator instead of the denominator.

5
Here, “solid” refers to a geometrical entity that can be equipped with a volumetric mesh. Objects of type “surface” on the other hand, can only be equipped by a boundary mesh. Their interior is referred to as a void.

6
That is, taking the shape functions into account.

7
Notice that this specifically applies to methods based on surface integration; volume integration may be a different matter.

8
If a shape shows strong curvature with respect to the mesh element size, a second-order mesh element may become inverted. That is, its boundaries may become self-overlapping. Usually, as a fallback, linear mesh elements are chosen. For more information on inverted mesh elements, see the COMSOL Multiphysics Reference Manual.
