Submodel in a Wheel Rim
Introduction
In stress analysis, it is common that the regions with high stresses are small when compared to the whole structure. Sometimes it is not feasible to have a mesh that at the same time captures the global behavior and resolves the stress concentrations with high accuracy. This is especially true in nonlinear or dynamic problems.
You can cope with these types of problems with a technique known as submodeling. First you solve the complete model with a mesh which is sufficient to capture the stiffness of the structure. In a second analysis you create a local model (submodel) of the region around the stress concentration with a fine mesh, and solve it using the displacements from the global model as boundary conditions.
There are some underlying assumptions when using submodels:
•
The global model is accurate enough to give correct displacements on the boundary to the submodel.
•
The improvements introduced in the submodel are so small that they do not introduce significant changes in stiffness on the global level. Given this, it could still be possible to introduce a nonlinear material locally in the submodel.
This example shows how to perform submodel analysis in COMSOL Multiphysics.
Model Definition
The wheel rim for this analysis has a ten-spoke design, such that the elements of the geometry cause the finite element mesh to become quite large. The loading on the tire is composed of both the tire pressure and a load transferred from the road via the tire to the rim.
In the submodel (shown in Figure 1), you cut out a small region around the hotspot using an intersection between the rim geometry and a 70 mm-by-70 mm-by-60 mm block.
Figure 1: The submodel geometry.
Material
Aluminum with E = 70 GPa, ν = 0.33.
Constraints
•
A region around each bolt hole where the wheel rim is attached to the wheel hub is fixed.
Loads
•
Tire pressure: The overpressure is 2 bar = 200 kPa.
•
The total load carried by the wheel corresponds to a weight of 1120 kg. It is applied as a pressure on the rim surfaces where the tire is in contact. Assume that the load distribution in the circumferential direction can be approximated as p = p0 cos ( 3 ϑ ), where ϑ is the angle from the point of contact between the road and the tire. The loaded area thus extends 30° in each direction from the peak of the load. Four different load cases are analyzed, where the center of the peak load is rotated 18° each time. In this way the whole load cycle for the rotating wheel can be covered. The pressure load and the load distribution carried by the wheel are shown in Figure 2.
Figure 2: Pressure and tire load when rotated 54° from the center of the first pair of spokes
•
In the submodel, the stress history for a full revolution of the wheel is computed. This is possible, since results from different spokes are applied to the submodel sequentially.
Results and Discussion
The highest stresses occur in the fillet where the spoke connects to the hub. In the global model the maximum equivalent stress is mesh dependent, and not reliable. In the submodel, where the resolution is good, the von Mises stress is about 96 MPa. It occurs when the load is rotated 18° from the reference angle. In a fatigue analysis, where the lifetime could vary as the fifth power of the stress, it is essential to get this level of accuracy in the critical regions.
Figure 3: Stresses in the global model.

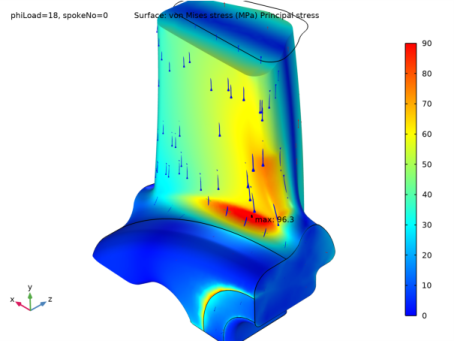

Figure 4: Stresses in the submodel at the load position giving the peak von Mises stress
Notes About the COMSOL Implementation
Two different components are used within the same mph file. In the global model, a general extrusion feature is introduced in order to describe the mapping of results from the global model to the submodel. The general extrusion is parameterized so that displacements from different spokes can be applied to the submodel.
The pressure distribution from the tire must be adjusted so that its resultant is the intended (about 11 kN). This can be done in different ways. One simple possibility is to run a separate analysis with the tire load as the only load case and use an arbitrary load amplitude. The total reaction force is then computed, and the load amplitude is rescaled based on the result. In this model a more sophisticated method is used. An extra Global Equation is added, in which the integral of the distribution load is set equal to the known force. Thus the amplitude of the load is solved simultaneously with the rest of the problem.
Application Library path: Structural_Mechanics_Module/Tutorials/rim_submodel
Modeling Instructions
From the File menu, choose New.
New
In the New window, click  Model Wizard.
Model Wizard
1
In the Model Wizard window, click  3D.
2
In the Select Physics tree, select Structural Mechanics>Solid Mechanics (solid).
3
Click Add.
4
Click  Study.
5
In the Select Study tree, select General Studies>Stationary.
6
Click  Done.
Global Definitions
Parameters 1
1
In the Model Builder window, under Global Definitions click Parameters 1.
2
In the Settings window for Parameters, locate the Parameters section.
3
In the table, enter the following settings:
Name
Expression
Value
Description
pInflation
2[bar]
2E5 Pa
Inflation pressure
tireLoad
1120[kg]*g_const
10983 N
Load on wheel
spokeNo
0
0
Spoke selection
spokeAngle
spokeNo*2*pi[rad]/5
0 rad
Rotation angle to selected spoke
phiLoad
0
0
Peak load angle
numLpos
4
4
Number of load positions in first sector
angleStep
360/(5*numLpos)
18
Step in peak load angle [deg]
angleLast
angleStep*(numLpos-1)
54
Last peak load angle [deg]
Geometry 1
1
In the Geometry toolbar, click  Insert Sequence.
2
Browse to the model’s Application Libraries folder and double-click the file wheel_rim_geom_sequence.mph.
3
In the Geometry toolbar, click  Build All.
Definitions
TireAttachment
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type TireAttachment in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Select Boundaries 2–4 and 6 only.
PressureSurface
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type PressureSurface in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Select Boundaries 2–6 only.
FixedToHub
1
In the Definitions toolbar, click  Explicit.
2
In the Settings window for Explicit, type FixedToHub in the Label text field.
3
Locate the Input Entities section. From the Geometric entity level list, choose Boundary.
4
Select Boundaries 8–12 only.
Add Material
1
In the Home toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select Built-in>Aluminum.
4
Click Add to Component in the window toolbar.
5
In the Home toolbar, click  Add Material to close the Add Material window.
Materials
Aluminum (mat1)
1
Click the  Show More Options button in the Model Builder toolbar.
2
In the Show More Options dialog box, in the tree, select the check box for the node Physics>Equation-Based Contributions.
3
Click OK.
Solid Mechanics (solid)
Fixed Constraint 1
1
In the Model Builder window, under Component 1 (comp1) right-click Solid Mechanics (solid) and choose Fixed Constraint.
2
In the Settings window for Fixed Constraint, locate the Boundary Selection section.
3
From the Selection list, choose FixedToHub.
Boundary Load 1
1
In the Physics toolbar, click  Boundaries and choose Boundary Load.
2
In the Settings window for Boundary Load, locate the Boundary Selection section.
3
From the Selection list, choose PressureSurface.
4
Locate the Force section. From the Load type list, choose Pressure.
5
In the p text field, type pInflation.
Definitions
Analytic 1 (an1)
1
In the Home toolbar, click  Functions and choose Local>Analytic.
2
In the Settings window for Analytic, locate the Definition section.
3
In the Expression text field, type (abs(atan2(x,y)-z*pi/180)<pi/6)*cos(3*(atan2(x,y)-z*pi/180)).
4
In the Arguments text field, type x, y, z.
5
Locate the Units section. In the Arguments text field, type m,m,1.
6
In the Function text field, type Pa.
7
In the Function name text field, type loadDistr.
Cylindrical System 2 (sys2)
In the Definitions toolbar, click  Coordinate Systems and choose Cylindrical System.
Solid Mechanics (solid)
Boundary Load 2
1
In the Physics toolbar, click  Boundaries and choose Boundary Load.
2
In the Settings window for Boundary Load, locate the Coordinate System Selection section.
3
From the Coordinate system list, choose Cylindrical System 2 (sys2).
4
Locate the Boundary Selection section. From the Selection list, choose TireAttachment.
5
Locate the Force section. Specify the FA vector as
-loadAmpl*loadDistr(X,Y,phiLoad)
r
0
phi
0.2*loadAmpl*loadDistr(X,Y,phiLoad)*(2*(Z>0)-1)
a
Definitions
Integration 1 (intop1)
1
In the Definitions toolbar, click  Nonlocal Couplings and choose Integration.
2
In the Settings window for Integration, locate the Source Selection section.
3
From the Geometric entity level list, choose Boundary.
4
From the Selection list, choose TireAttachment.
Solid Mechanics (solid)
Global Equations 1
1
In the Physics toolbar, click  Global and choose Global Equations.
2
In the Settings window for Global Equations, locate the Global Equations section.
3
In the table, enter the following settings:
Name
f(u,ut,utt,t) (1)
Initial value (u_0) (1)
Initial value (u_t0) (1/s)
Description
loadAmpl
loadAmpl*intop1(loadDistr(X,Y,0)*cos(atan2(X,Y)))-tireLoad
0
0

4
Locate the Units section. Click  Select Source Term Quantity.
5
In the Physical Quantity dialog box, type force in the text field.
6
Click  Filter.
7
In the tree, select General>Force (N).
8
Click OK.
Mesh 1
In the Model Builder window, under Component 1 (comp1) right-click Mesh 1 and choose Build All.
Study 1
Step 1: Stationary
1
In the Model Builder window, under Study 1 click Step 1: Stationary.
2
In the Settings window for Stationary, click to expand the Study Extensions section.
3
Select the Auxiliary sweep check box.
4
Click  Add.
5
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
phiLoad (Peak load angle)
range(0,angleStep,angleLast)

Solution 1 (sol1)
1
In the Study toolbar, click  Show Default Solver.
2
In the Model Builder window, expand the Solution 1 (sol1) node.
Because of the model’s considerable size, you use an iterative solver that can significantly save on the memory needed for the computations. Use the default GMRES iterative solver with Geometric Multigrid as a preconditioner. On the coarse multigrid level, the solver will lower the order in the discretization of the displacement variables from the default quadratic elements to linear elements.
3
In the Model Builder window, expand the Study 1>Solver Configurations>Solution 1 (sol1)>Stationary Solver 1 node.
4
Right-click Suggested Iterative Solver (solid) and choose Enable.
5
In the Study toolbar, click  Compute.
Results
Stress (solid)
1
In the Model Builder window, expand the Results>Stress (solid) node, then click Stress (solid).
2
In the Settings window for 3D Plot Group, locate the Data section.
3
From the Parameter value (phiLoad) list, choose 0.
Surface 1
1
In the Model Builder window, click Surface 1.
2
In the Settings window for Surface, locate the Expression section.
3
From the Unit list, choose MPa.
4
Click to expand the Range section. Select the Manual color range check box.
5
In the Minimum text field, type 0.
6
In the Maximum text field, type 90.
To get a better view of the region with the highest stresses (compare with Figure 3), use a View feature node.
Definitions
View 2
1
In the Model Builder window, under Component 1 (comp1) right-click Definitions and choose View.
In the graphics window, rotate the model and capture the highest stressed part.
2
In the Model Builder window, click View 2.
3
In the Settings window for View, locate the View section.
4
Select the Lock camera check box.
Results
Stress (solid)
1
In the Model Builder window, under Results click Stress (solid).
2
In the Settings window for 3D Plot Group, locate the Plot Settings section.
3
From the View list, choose View 2.
4
In the Stress (solid) toolbar, click  Plot.
A plot showing boundary loads is added by default. Change its setting slightly to reproduce Figure 2.
Applied Loads (solid)
In the Model Builder window, expand the Applied Loads (solid) node.
Boundary Load 1
1
In the Model Builder window, expand the Results>Applied Loads (solid)>Boundary Loads (solid) node, then click Boundary Load 1.
2
In the Settings window for Arrow Surface, locate the Coloring and Style section.
3
Select the Scale factor check box.
4
In the associated text field, type 4E-8.
5
In the Boundary Loads (solid) toolbar, click  Plot.
Start creating the submodel.
Add Component
In the Model Builder window, right-click the root node and choose Add Component>3D.
Geometry 2
1
In the Geometry toolbar, click  Insert Sequence.
2
Browse to the model’s Application Libraries folder and double-click the file wheel_rim_geom_sequence.mph.
3
In the Geometry toolbar, click  Build All.
Rotate 1 (rot1)
In the Model Builder window, under Component 2 (comp2)>Geometry 2 right-click Rotate 1 (rot1) and choose Disable.
Form Composite Domains 1 (cmd1)
1
In the Model Builder window, click Form Composite Domains 1 (cmd1).
2
In the Settings window for Form Composite Domains, click  Build Selected.
Block 1 (blk1)
1
In the Geometry toolbar, click  Block.
2
In the Settings window for Block, locate the Size and Shape section.
3
In the Width text field, type 6e-2.
4
In the Depth text field, type 7e-2.
5
In the Height text field, type 6e-2.
6
Locate the Position section. In the y text field, type 6.5e-2.
7
In the z text field, type 6e-2.
Intersection 1 (int1)
1
In the Geometry toolbar, click  Booleans and Partitions and choose Intersection.
2
Click in the Graphics window and then press Ctrl+A to select both objects.
Form Composite Domains 1 (cmd1)
1
In the Model Builder window, click Form Composite Domains 1 (cmd1).
2
In the Settings window for Form Composite Domains, click  Build Selected.
3
Click the  Zoom Extents button in the Graphics toolbar.
Add Material
1
In the Home toolbar, click  Add Material to open the Add Material window.
2
Go to the Add Material window.
3
In the tree, select Built-in>Aluminum.
4
Click Add to Component in the window toolbar.
5
In the Home toolbar, click  Add Material to close the Add Material window.
Definitions (comp1)
In the Model Builder window, under Component 1 (comp1) click Definitions.
General Extrusion 1 (genext1)
1
In the Definitions toolbar, click  Nonlocal Couplings and choose General Extrusion.
2
In the Settings window for General Extrusion, type from_global in the Operator name text field.
3
Locate the Source Selection section. From the Selection list, choose All domains.
4
Locate the Source section. From the Source frame list, choose Material  (X, Y, Z).
5
Locate the Destination Map section. In the X-expression text field, type X*cos(spokeAngle)-Y*sin(spokeAngle).
6
In the Y-expression text field, type Y*cos(spokeAngle)+X*sin(spokeAngle).
7
In the Z-expression text field, type Z.
8
Click to expand the Advanced section. In the Extrapolation tolerance text field, type 0.5.
Component 2 (comp2)
In the Model Builder window, click Component 2 (comp2).
Add Physics
1
In the Home toolbar, click  Add Physics to open the Add Physics window.
2
Go to the Add Physics window.
3
In the tree, select Structural Mechanics>Solid Mechanics (solid).
4
Click Add to Component 2 in the window toolbar.
5
In the Home toolbar, click  Add Physics to close the Add Physics window.
Solid Mechanics 2 (solid2)
Fixed Constraint 1
1
Right-click Component 2 (comp2)>Solid Mechanics 2 (solid2) and choose Fixed Constraint.
2
Select Boundary 3 only.
Prescribed Displacement 1
1
In the Physics toolbar, click  Boundaries and choose Prescribed Displacement.
2
Select Boundaries 1 and 6–8 only.
3
In the Settings window for Prescribed Displacement, locate the Prescribed Displacement section.
4
Select the Prescribed in x direction check box.
5
In the u 0 x text field, type comp1.from_global(comp1.u*cos(spokeAngle)+comp1.v*sin(spokeAngle)).
6
Select the Prescribed in y direction check box.
7
In the u 0 y text field, type comp1.from_global(comp1.v*cos(spokeAngle)-comp1.u*sin(spokeAngle)).
8
Select the Prescribed in z direction check box.
9
In the u 0 z text field, type comp1.from_global(comp1.w).
Mesh 2
1
In the Model Builder window, under Component 2 (comp2) click Mesh 2.
2
In the Settings window for Mesh, locate the Physics-Controlled Mesh section.
3
From the Element size list, choose Extra fine.
4
Locate the Mesh Settings section. From the Sequence type list, choose User-controlled mesh.
Size 1
1
In the Model Builder window, right-click Free Tetrahedral 1 and choose Size.
2
In the Settings window for Size, locate the Geometric Entity Selection section.
3
From the Geometric entity level list, choose Boundary.
4
Select Boundary 5 only.
5
Locate the Element Size section. From the Predefined list, choose Extremely fine.
6
Click  Build All.
Add Study
1
In the Home toolbar, click  Add Study to open the Add Study window.
2
Go to the Add Study window.
3
Find the Studies subsection. In the Select Study tree, select General Studies>Stationary.
4
Find the Physics interfaces in study subsection. In the table, clear the Solve check box for Solid Mechanics (solid).
5
Click Add Study in the window toolbar.
6
In the Model Builder window, click the root node.
7
In the Home toolbar, click  Add Study to close the Add Study window.
Study 2
Step 1: Stationary
1
In the Settings window for Stationary, click to expand the Values of Dependent Variables section.
Fetch the displacements from the solution of the global model.
2
Find the Values of variables not solved for subsection. From the Settings list, choose User controlled.
3
From the Method list, choose Solution.
4
From the Study list, choose Study 1, Stationary.
5
From the Parameter value (phiLoad) list, choose All.
6
Locate the Study Extensions section. Select the Auxiliary sweep check box.
7
From the Sweep type list, choose All combinations.
8
Click  Add.
9
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
spokeNo (Spoke selection)


10
Click  Add.
11
In the table, enter the following settings:
Parameter name
Parameter value list
Parameter unit
spokeNo (Spoke selection)
range(0,1,4)

phiLoad (Peak load angle)
range(0,angleStep,angleLast)

Solution 2 (sol2)
In the Study toolbar, click  Show Default Solver.
Solution 2 (sol2)
1
In the Model Builder window, expand the Study 2>Solver Configurations>Solution 2 (sol2) node.
For the submodel, you also use the default suggested iterative solver.
2
In the Model Builder window, expand the Study 2>Solver Configurations>Solution 2 (sol2)>Stationary Solver 1 node.
3
Right-click Suggested Iterative Solver (solid2) and choose Enable.
Study 1
Solution 1 (sol1)
In the Model Builder window, expand the Study 2>Solver Configurations>Solution 2 (sol2)>Stationary Solver 1>Suggested Iterative Solver (solid2) node.
Study 2
Solution 2 (sol2)
1
In the Model Builder window, expand the Study 1>Solver Configurations>Solution 1 (sol1)>Stationary Solver 1>Suggested Iterative Solver (solid) node, then click Study 2>Solver Configurations>Solution 2 (sol2)>Stationary Solver 1>Suggested Iterative Solver (solid2)>Multigrid 1.
2
In the Settings window for Multigrid, locate the General section.
3
In the Use hierarchy in geometries list, select Geometry 1.
4
Under Use hierarchy in geometries, click  Delete.
Study 1
Solution 1 (sol1)
1
In the Model Builder window, under Study 1>Solver Configurations>Solution 1 (sol1)>Stationary Solver 1>Suggested Iterative Solver (solid) click Multigrid 1.
2
In the Settings window for Multigrid, locate the General section.
3
In the Use hierarchy in geometries list, select Geometry 2.
4
Under Use hierarchy in geometries, click  Delete.
Avoid saving a lot of duplicate results for the full geometry.
Study 2
Solution 2 (sol2)
1
In the Model Builder window, expand the Study 2>Solver Configurations>Solution 2 (sol2)>Dependent Variables 1 node, then click Displacement field (comp1.u).
2
In the Settings window for Field, locate the General section.
3
Clear the Store in output check box.
4
In the Model Builder window, under Study 2>Solver Configurations>Solution 2 (sol2)>Dependent Variables 1 click State variable loadAmpl (comp1.ODE1).
5
In the Settings window for State, locate the General section.
6
Clear the Store in output check box.
7
In the Study toolbar, click  Compute.
Results
Surface 1
1
In the Model Builder window, expand the Results>Stress (solid2) node, then click Surface 1.
2
In the Settings window for Surface, locate the Expression section.
3
From the Unit list, choose MPa.
4
Locate the Range section. Select the Manual color range check box.
5
In the Minimum text field, type 0.
6
In the Maximum text field, type 90.
Marker 1
1
Right-click Surface 1 and choose Marker.
2
In the Settings window for Marker, locate the Display section.
3
From the Display list, choose Max.
4
Locate the Text Format section. In the Display precision text field, type 3.
Stress (solid2)
1
In the Model Builder window, click Stress (solid2).
2
In the Settings window for 3D Plot Group, locate the Data section.
3
From the Parameter value (spokeNo) list, choose 0.
4
From the Parameter value (phiLoad) list, choose 18.
Principal Stress Surface 1
In the Stress (solid2) toolbar, click  More Plots and choose Principal Stress Surface.
Deformation 1
Right-click Principal Stress Surface 1 and choose Deformation.
Principal Stress Surface 1
1
In the Settings window for Principal Stress Surface, click to expand the Inherit Style section.
2
From the Plot list, choose Surface 1.
3
Clear the Arrow scale factor check box.
4
Clear the Color check box.
5
Clear the Color and data range check box.
Stress in Submodel
1
In the Model Builder window, under Results click Stress (solid2).
2
In the Settings window for 3D Plot Group, type Stress in Submodel in the Label text field.
Again, create a View 3D feature node for the plot
Definitions (comp2)
View 4
1
In the Model Builder window, under Component 2 (comp2) right-click Definitions and choose View.
2
In the Settings window for View, locate the View section.
3
Clear the Show grid check box.
In the graphics window, rotate the model and capture the highest stressed part.
4
In the Model Builder window, click View 4.
5
Select the Lock camera check box.
Apply the view to the submodel plot.
Results
Stress in Submodel
1
In the Model Builder window, under Results click Stress in Submodel.
2
In the Settings window for 3D Plot Group, locate the Plot Settings section.
3
From the View list, choose View 4.
4
In the Stress in Submodel toolbar, click  Plot.
Finally, create an animation showing the stress history for a complete revolution of the wheel.
Animation 1
1
In the Results toolbar, click  Animation and choose Player.
2
In the Settings window for Animation, locate the Scene section.
3
From the Subject list, choose Stress in Submodel.
4
Locate the Animation Editing section. From the Loop over list, choose All solutions.
5
In the Parameter values (phiLoad,spokeNo) list, choose all values.
6
Locate the Frames section. From the Frame selection list, choose All.
7
Right-click Animation 1 and choose Play.
Set the first study so that it computes only the full model.
Study 1
Step 1: Stationary
1
In the Model Builder window, under Study 1 click Step 1: Stationary.
2
In the Settings window for Stationary, locate the Physics and Variables Selection section.
3
In the table, clear the Solve for check box for Solid Mechanics 2 (solid2).
