Vibrations of an Impeller

This tutorial model demonstrates the use of dynamic cyclic symmetry with postprocessing on the full geometry. A 3D impeller with eight identical blades can be divided into eight sectors of symmetry. The model computes the fundamental frequencies for the full impeller geometry and compares them to the values computed for a single sector with the cyclic symmetry boundary conditions applied on two sector boundaries. It also demonstrates how to set up a frequency response analysis for one sector of symmetry, and how to postprocess the results into the full geometry by using the sector datasets. The results for one sector are in very good agreement with the computations on the full geometry, while both the computational time and memory requirements are significantly reduced.

Model Definition

Figure 1 shows the impeller geometry. The problem is solved using the Cartesian coordinate system in 3D.

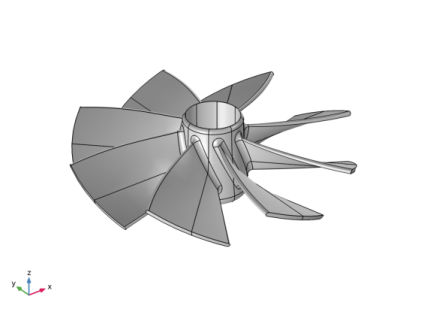

Figure 1: Impeller geometry.

The geometry can be divided into eight identical parts, each represented by a sector with an angle θ = π/4 with respect to rotation around the z-axis; see Figure 2.

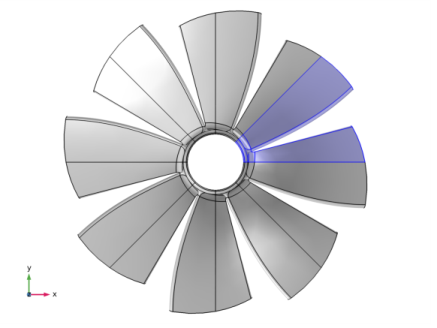

Figure 2: Sector of periodicity.

The impeller is made of aluminum, and is supposed to be mounted on a shaft. The mounting boundary is modeled via a fixed constraint, and all possible effects of the shaft rotation are neglected.

The analysis is based on the Floquet theory which can be applied to the problem of small-amplitude vibrations of spatially periodic structures, Ref. 1. This includes the case of cyclic symmetry studied in this example.

For an eigenfrequency study, one can show that all the eigenmodes of the full problem can be found by performing the analysis on one sector of symmetry only and imposing the cyclic symmetry of the eigenmodes with an angle of periodicity

, where the cyclic symmetry mode number m can vary from 0 to N/2, with N being the total number of sectors so that θ = 2π/N.

Results and Discussion

In the first part of the analysis, you perform an eigenfrequency analysis of a single sector of periodicity, and then of the full geometry. A sweep over all required values of the cyclic symmetry parameter recovers all the eigenfrequencies of the full model with decent accuracy. See the Modeling Instructions section for in-detail comparison of the results and discussion of the performance gains.

In the second part, you perform a frequency-response analysis. Again, first of the sector of periodicity, and then of the full impeller geometry. The excitation is a pressure load applied to all free boundaries of the impeller. You enter it as a normal component of the boundary load using the expression

using the magnitude of p0 = 104 Pa and cyclic symmetry parameter m = 3. The excitation frequency is 200 Hz. Figure 3 and Figure 4 show very good agreement between the results computed on the full and reduced geometry.

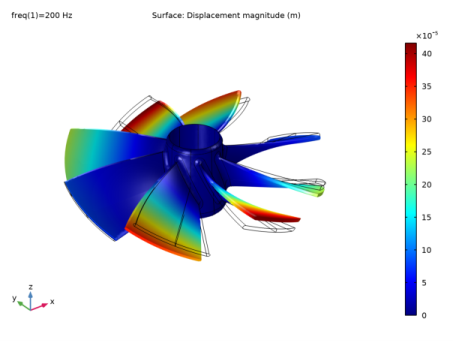

Figure 3: Frequency response computed on the sector of periodicity only, and then visualized over the full geometry.

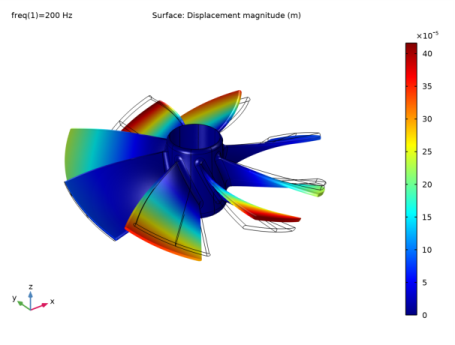

Figure 4: Frequency response computed for the full geometry.

Notes About the COMSOL Implementation

Meshing

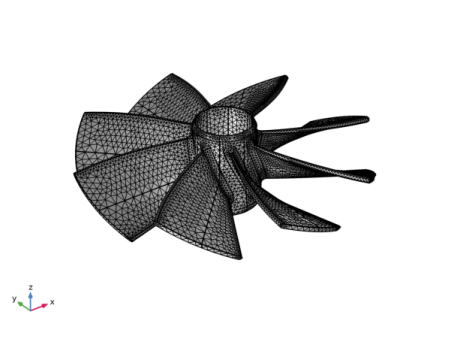

You use an unstructured mesh with the same size of the mesh elements for both calculations on one sector of symmetry and on the full geometry, see Figure 5. This helps to compare the results for this tutorial model. In practice, the mesh used for computations on the sector could be much finer, so that the results obtained via such geometry reduction would provide significantly better resolution of the results under the same memory requirements as for the full geometry (with a coarser mesh).
