mphnavigator

Graphical user interface (GUI) for viewing the COMSOL Multiphysics model object.

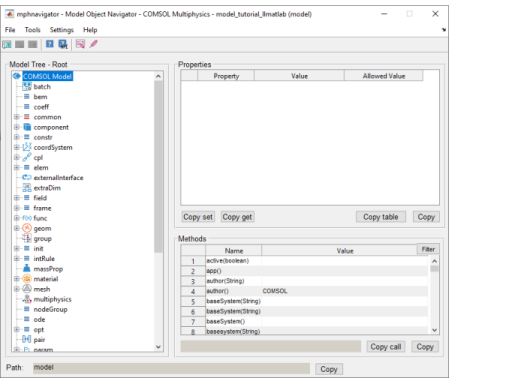

mphnavigator opens the Model Object Navigator which is a graphical user interface that can be used to navigate the model object and to view the properties and methods of the nodes in the model tree.

The GUI requires that the COMSOL object is stored in a variable in the base workspace (at the MATLAB® command prompt) with the name model.

mphnavigator(model) opens the model object defined with the name model in Model Object Navigator.

Example

Load busbar.mph from the Model Library:

mphopen busbar

Navigate the model object that is accessible with the variable model

mphnavigator

Load effective_diffusivity.mph from the Applications Libraries and set the model object with the variable eff_diff:

eff_diff = mphopen('effective_diffusivity');

Navigate the model object that is accessible with the variable eff_diff

mphnavigator(eff_diff)
