Heat Sink — Straight Fins Part
This part inherits all the functionalities of the
Heat Sink — Parameterized Fin Types
part, but the
y
direction parameters are enforced to define straight fins.
In addition, notch and chamfer transformations can be applied to the fins, as shown on
Figure 3-18
.

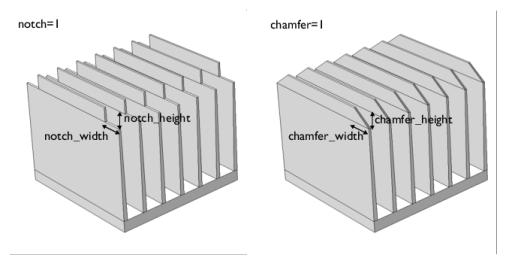

Figure 3-18:
Notch and chamfer parameters in Heat Sink — Straight Fins part
