Importing the Geometry
1
On the Home toolbar click Import .
2
In the Settings window for Import click the Browse button.
3
In your COMSOL installation directory navigate to the folder applications/CAD_Import_Module/Tutorial_Examples and double click the file repair_demo_1.x_b.
4
Click Import.

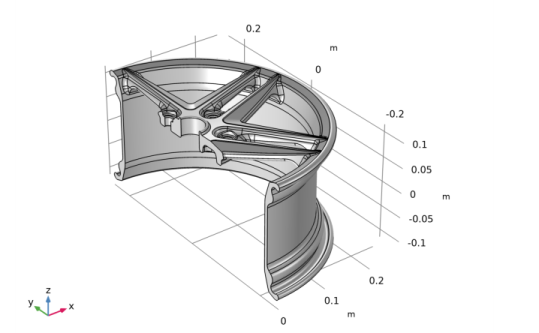

As soon as the import is done the geometry appears in the Graphics window.
